1050 Aluminum Plate

Delixin Steel is a professional aluminum distributor. With the support of the most professional aluminum manufacturers and a large number of customers, we can not only provide you with ordinary aluminum, but also help you find very personalized aluminum, such as special aluminum grades, special sizes, special process shapes, etc.

+86 18961566775

+86 18961566775

delixin01@delixinsteel.com

◉ Product Details

1050 is a product in the pure aluminum plate series. It has similar chemical composition and mechanical properties to the 1060 series products. It is basically replaced by 1060 in current applications. The last two Arabic numerals of the 1050 series are 50. According to the international brand naming principles, the aluminum content must reach more than 99.5% to be a qualified product. Since it does not contain other technical elements, the production process is relatively simple and the price is relatively cheap. It is currently the most commonly used series in conventional industries. Industrial pure aluminum has the characteristics of high plasticity, corrosion resistance, good electrical and thermal conductivity, but low strength, not strengthened by heat treatment, poor machinability, and can accept contact welding and gas welding.

Aluminum plate technical parameters (commonly used models)
Aluminum Plate model	Temper	Thickness(mm)	Width(mm)	Length(mm)
1050 Aluminum plate	H111, H112, H14, H18, H19, H22, H24, H26, H28	0.2mm-500mm	20mm-2630mm	customized
1060 Aluminum plate	H111, H112, H14, H18, H19, H22, H24, H26, H28, etc.	0.1-500mm	20mm-2640mm	500-10000mm
1100 Aluminum plate	O, H14, H16, H24, H22, H112, H111, H26, H12, H28, etc.	0.1-500mm	0.1-500mm	500-16000mm
2024 Aluminum plate	T3, T4, T6, T72, T81, T351, T861, T3511, T8611, HO	0.1mm-550mm	700mm-2650mm	500-11000mm
3003 Aluminum plate	HO, H12, H14, H16, H18, H19, H22, h24, h26, H28, H112, etc.	0.2mm-450mm	50mm-2650mm	500-12000mm
5005 Aluminum plate	H12, H14, H16, H18, H22, h24, h26, H28, H36, H38, etc.	0.2mm-600mm	30mm-2650mm	500-12000mm
5052 Aluminum plate	H12, H14, H16, H18, H22, h24, h26, H28, H36, H38, etc.	0.2mm-500mm	60mm-2650mm	500-10000mm
5083 Aluminum plate	H111, H114, H116, H321, H22, H24, H26, H32, H16, H12, HO, etc.	0.15mm-500mm	30mm-2600mm	500-9000mm
6061 Aluminum plate	HO, F, T4, T6, T651	0.35mm-500mm	500mm-2600mm	600-11000mm
6063 Aluminum plate	O,T6,T651,T4	0.15-600mm	500mm-2800mm	500-16000mm
7050 Aluminum plate	HO, F, T112, T651, T6, T7451	1.0mm-600mm	600mm-2500mm	600-8000mm
7075 Aluminum plate	HO, T651, T7451, T6, etc	15.0mm-600mm	500mm-2600mm	600-8000mm

Standard	JIS G3141,DIN1623,EN10130
Thickness	0.15-6.0mm（Aluminum sheet） 6.0-25.0mm（Aluminum plate）
Temper	O, H12, H22, H32, H14, H24, H34, H16, H26, H36, H18, H28, H38, H19, H25, H27,H111, H112,H241, H332, etc.
Surface Treatment	Mill Finished, Anodized, Embossed, PVC Coated etc
Alloy		Application field
1xxx	1050	Insulation, food industry, decoration, lamp, traffic signs etc.
	1060	Fan blade, Lamps and lanterns, Capacitor shell, Auto parts, Welding parts.
	1070	Capacitor, Rear panel of vehicle refrigerator, charging point, heat sink etc
	1100	Cooker, building material, printing, heat exchanger, bottle cap etc
2xxx	2A12 2024	Aircraft structures, rivets, aviation, machinery, missile components, the card wheel hub, propeller components, aerospace
		parts,car parts and various other structural parts.

3xxx	3003 3004	Aluminum curtain wall panel, aluminum Ceiling, Electric cooker bottom, TV LCD backboard, storage tank, curtain wall, building
	3005 3105	construction panel heat sink, billboard. Industrial floor, air conditioning, refrigerators radiators, Make-up board, Prefabricated
		house etc.
5xxx	5052	Marine and transportation material, railway carriage's inner and outer cabinet, oil and chemical industry storage device,equipment
	5052	and medical device panel etc.
	5005	Marine applications, bodies of boats, buses, trucks and trailer. Curtain wall panel.
	5086	Ship board, deck, bottom and edge panel etc.
	5083	Tanker, oil storage tank, drilling platform, ship board, deck, bottom, welded parts and edge panel, railway carriage 's
	5182	board,automotive and aircraft panel, cooling device and automotive molding etc.
	5454
	5754	Tanker body, marine facilities, pressure container, transportation etc.
6xxx	6061	Railway inside and outside parts, board and bed plate. Industry molding
	6083	Highly stressed applications includes Roofing construction,transportation, and marine as well as mould.
	6082
	6063	Auto parts, architectural fabrication, window and door frames, aluminum furniture, electronic components as well as various
		consumer durable products.

7xxx	7005	Truss, rod/bar and the container in transportation vehicles; Large-sized heat ex changers.
	7050	Molding (bottles) mode, ultrasonic plastic welding mold, golf head, shoe mold, paper and plastic molding, foam molding, lost wax
	7050	mold, templates, fixtures, machinery and equipment.
	7075	Aerospace industry, military industry, electronic etc.

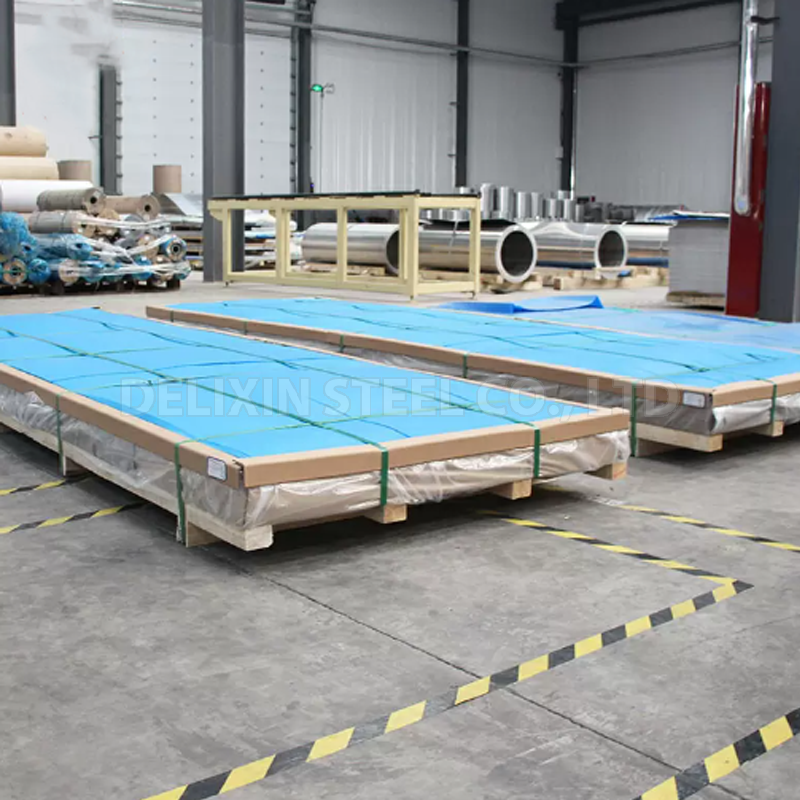

◉ Product Show

◉ Application

Aluminum is widely used in electronics, packaging, construction, machinery, and so on. According to the chemical composition, it is divided into alloy aluminum and pure aluminum. According to the processing shape, it is divided into aluminum coil, aluminum plate, aluminum sheet, aluminum strip, aluminum tube, aluminum rod, aluminum profile and so on.

◉ Certificate

◉ FAQ

Q: Can I get samples before order ?
A: Yes, of course.We can produce by your samples or technical drawings ;
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory ;
Q: How can I get a quotation from you ?
A: You can leave us message or send us by email , and we will reply every message and email in time or we may talk on line ;
Q: What product information do I need to provide ?
A: You need to provide the material, thickness, width, length or any other detailes and the number of tons you want to purchase ;
Q: Does the product have quality inspection before loading ?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept the third party inspection absolutely ;
Q: How do we trust your company ?
A: We specialise in steel business for years . You are welcome to investigate in any ways .
