6063 Aluminum Plate
Delixin Steel is a professional aluminum distributor. With the support of the most professional aluminum manufacturers and a large number of customers, we can not only provide you with ordinary aluminum, but also help you find very personalized aluminum, such as special aluminum grades, special sizes, special process shapes, etc.
+86 18961566775
+86 18961566775
delixin01@delixinsteel.com
Contact Us

◉ Product Details

6063 aluminum alloy material. The main alloying elements are magnesium and silicon. It has excellent processing performance, excellent weldability, extrusion and electroplating properties, good corrosion resistance, toughness, easy polishing and coloring, and excellent anodizing effect. It is a typical extrusion material. Pressed alloy. 6063 aluminum alloy profiles are widely used in building profiles, irrigation pipes, vehicles, benches, and furniture due to their good plasticity, moderate heat treatment strength, good welding performance, and gorgeous surface color after anodization. , tubes, rods and profiles for lifts, fences, etc. It has many valuable features: 1. Strengthened by heat treatment, high impact toughness, and insensitive to notches. 2. It has excellent thermoplasticity and can be extruded at high speed into various profiles with complex structures, thin walls, and hollows, or forged into forgings with complex structures. The quenching temperature range is wide and the quenching sensitivity is low. After extrusion and forging, as long as the temperature is higher than the quenching temperature, it can be quenched by water spraying or water penetration. Thin-walled parts (8<3mm) can also be air-quenched. 3. Excellent welding performance and corrosion resistance, no tendency of stress corrosion cracking. Among heat treatment-strengthenable aluminum alloys, A1-Mg-Si alloy is the only alloy in which no stress corrosion cracking phenomenon has been found. 4. The surface after processing is very smooth and easy to anodize and color.

Aluminum plate technical parameters (commonly used models)
Aluminum Plate modelTemperThickness(mm)Width(mm)Length(mm)
1050 Aluminum plateH111, H112, H14, H18, H19, H22, H24, H26, H280.2mm-500mm20mm-2630mmcustomized
1060 Aluminum plateH111, H112, H14, H18, H19, H22, H24, H26, H28, etc.0.1-500mm20mm-2640mm500-10000mm
1100 Aluminum plateO, H14, H16, H24, H22, H112, H111, H26, H12, H28, etc.0.1-500mm0.1-500mm500-16000mm
2024 Aluminum plateT3, T4, T6, T72, T81, T351, T861, T3511, T8611, HO0.1mm-550mm700mm-2650mm500-11000mm
3003 Aluminum plateHO, H12, H14, H16, H18, H19, H22, h24, h26, H28, H112, etc.0.2mm-450mm50mm-2650mm500-12000mm
5005 Aluminum plateH12, H14, H16, H18, H22, h24, h26, H28, H36, H38, etc.0.2mm-600mm30mm-2650mm500-12000mm
5052 Aluminum plateH12, H14, H16, H18, H22, h24, h26, H28, H36, H38, etc.0.2mm-500mm60mm-2650mm500-10000mm
5083 Aluminum plateH111, H114, H116, H321, H22, H24, H26, H32, H16, H12, HO, etc.0.15mm-500mm30mm-2600mm500-9000mm
6061 Aluminum plateHO, F, T4, T6, T6510.35mm-500mm500mm-2600mm600-11000mm
6063 Aluminum plateO,T6,T651,T40.15-600mm500mm-2800mm500-16000mm
7050 Aluminum plateHO, F, T112, T651, T6, T74511.0mm-600mm600mm-2500mm600-8000mm
7075 Aluminum plateHO, T651, T7451, T6, etc15.0mm-600mm500mm-2600mm600-8000mm
StandardJIS G3141,DIN1623,EN10130
Thickness0.15-6.0mm(Aluminum sheet) 6.0-25.0mm(Aluminum plate)
TemperO, H12, H22, H32, H14, H24, H34, H16, H26, H36, H18, H28, H38, H19, H25, H27,H111, H112,H241, H332, etc.
Surface TreatmentMill Finished, Anodized, Embossed, PVC Coated etc
AlloyApplication field
1xxx1050Insulation, food industry, decoration, lamp, traffic signs etc.
1060Fan blade, Lamps and lanterns, Capacitor shell, Auto parts, Welding parts.
1070Capacitor, Rear panel of vehicle refrigerator, charging point, heat sink etc
1100Cooker, building material, printing, heat exchanger, bottle cap etc
2xxx2A12 2024Aircraft structures, rivets, aviation, machinery, missile components, the card wheel hub, propeller components, aerospace
parts,car parts and various other structural parts.

3xxx3003 3004Aluminum curtain wall panel, aluminum Ceiling, Electric cooker bottom, TV LCD backboard, storage tank, curtain wall, building
3005 3105construction panel heat sink, billboard. Industrial floor, air conditioning, refrigerators radiators, Make-up board, Prefabricated

house etc.
5xxx5052Marine and transportation material, railway carriage's inner and outer cabinet, oil and chemical industry storage device,equipment
and medical device panel etc.
5005Marine applications, bodies of boats, buses, trucks and trailer. Curtain wall panel.
5086Ship board, deck, bottom and edge panel etc.
5083Tanker, oil storage tank, drilling platform, ship board, deck, bottom, welded parts and edge panel, railway carriage 's
5182board,automotive and aircraft panel, cooling device and automotive molding etc.
5454
5754Tanker body, marine facilities, pressure container, transportation etc.
6xxx6061Railway inside and outside parts, board and bed plate. Industry molding
6083Highly stressed applications includes Roofing construction,transportation, and marine as well as mould.
6082

6063

Auto parts, architectural fabrication, window and door frames, aluminum furniture, electronic components as well as various
consumer durable products.

7xxx7005Truss, rod/bar and the container in transportation vehicles; Large-sized heat ex changers.
7050Molding (bottles) mode, ultrasonic plastic welding mold, golf head, shoe mold, paper and plastic molding, foam molding, lost wax
mold, templates, fixtures, machinery and equipment.
7075Aerospace industry, military industry, electronic etc.

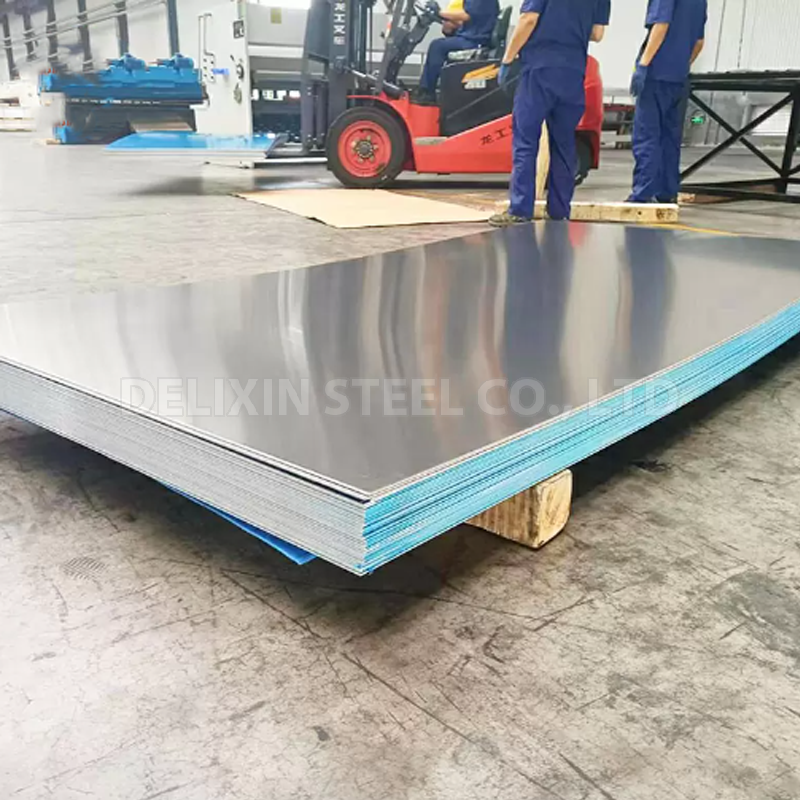

◉ Product Show


◉ Application

Aluminum is widely used in electronics, packaging, construction, machinery, and so on. According to the chemical composition, it is divided into alloy aluminum and pure aluminum. According to the processing shape, it is divided into aluminum coil, aluminum plate, aluminum sheet, aluminum strip, aluminum tube, aluminum rod, aluminum profile and so on.



◉ Certificate

◉ FAQ

Q: Can I get samples before order ?
A: Yes, of course.We can produce by your samples or technical drawings ;
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory ;
Q: How can I get a quotation from you ?
A: You can leave us message or send us by email , and we will reply every message and email in time or we may talk on line ;
Q: What product information do I need to provide ?
A: You need to provide the material, thickness, width, length or any other detailes and the number of tons you want to purchase ;
Q: Does the product have quality inspection before loading ?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept the third party inspection absolutely ;
Q: How do we trust your company ?
A: We specialise in steel business for years . You are welcome to investigate in any ways .
